Axioline Smart Elements, communication module, interface: RS-485, degree of protection: IP20

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

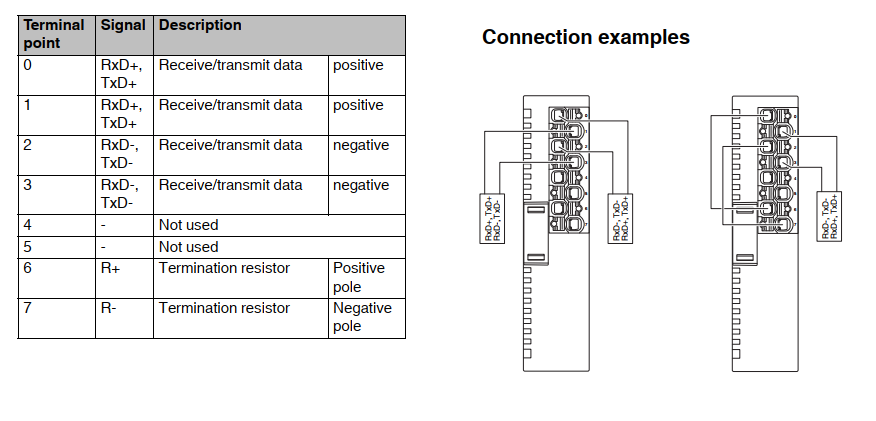

Connections

Input/Output Word

INPUT WORD and OUTPUT WORD are not allocated to the module.

Configuration

Each module used is associated with a serial port (e.g., using an RP1, the first module will be associated with port 3 since the first two are already the internal serial ports of the RP-1) and can be managed through the instructions and shell commands used for the serial channels. (See Serial Communication).

To see which serial port the module is associated with, look at the rhw.cfg file
