Axioline F module for power measurement, voltage input: up to 400 V AC (phase/neutral conductor) or 690 V AC (phase/phase), current input: up to 5 A AC, transmission rate: 100 MBit/s, degree of protection: IP20.

Configuration and reading of asynchronous data is done with the usual AXIO_ROBJ and AXIO_WOBJ instructions.

If the module is connected directly to the control or if it is connected to the EtherCAT head and then defined as an ECAT_PM device, the reading of process information is done using the AXIO_PM_R function. To use this function, the keyword ECAT_PM must be entered in rte.cfg.

Of course, all information is updated consistently.

NOTE: Only some information in the module data sheet is given below. For more details refer to the data sheet itself.

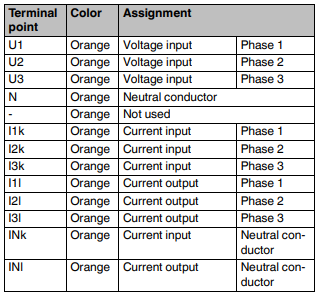

Connections

connessione_axl_f_pm_ef_1f

Word Input/Output

No Word is allocated to the module.
