Axioline Smart Elements, temperature measurement module, 4 analog inputs, 1 external cold junction.

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

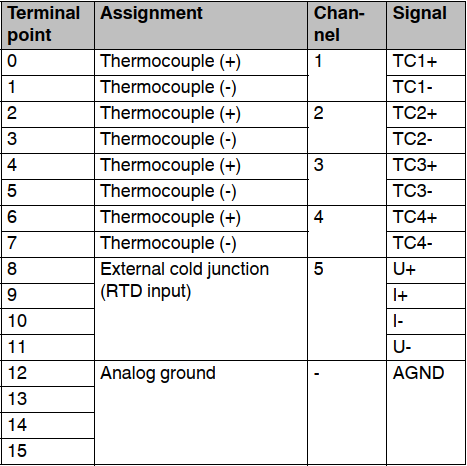

Connections

Example connections

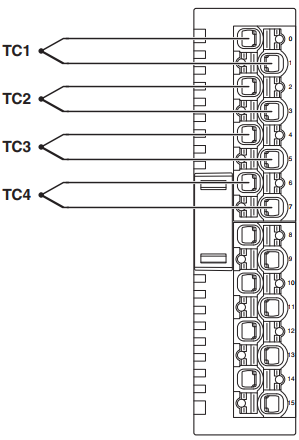

1. Absolute temperature measurement with internal cold junction compensation

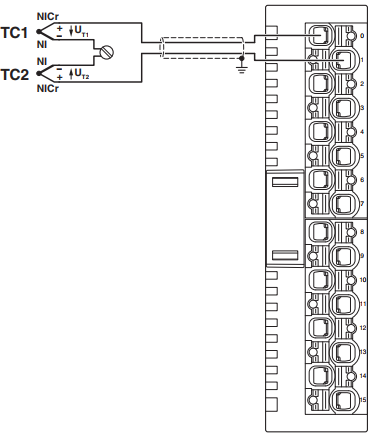

2. Differential temperature measurement

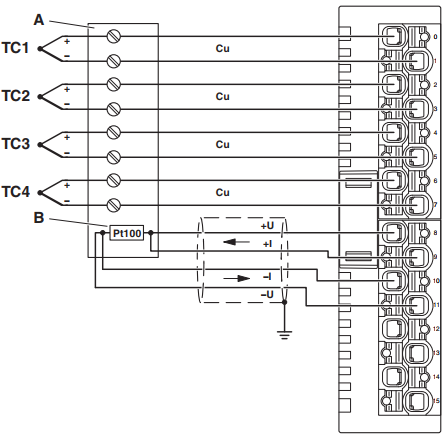

3. Thermocouple detection with external cold junction compensation

Input/Output Word

5 INPUT WORDS and 5 (4 unused) OUTPUT WORDS, allocated to the module as follows:

4 INP_W correspond to the measured values of the thermocouple channel. The last INP_W corresponds to the measured value of the cold junction.

The first OUT_W corresponds to the measured value specified for the cold junction. The last 4 OUT_W are not used.

Parameterization
