Axioline Smart Elements, Digital output module, Digital outputs: 16, 24 V DC, 500 mA, Connection technology: 1 conductor, Protection class IP20.

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

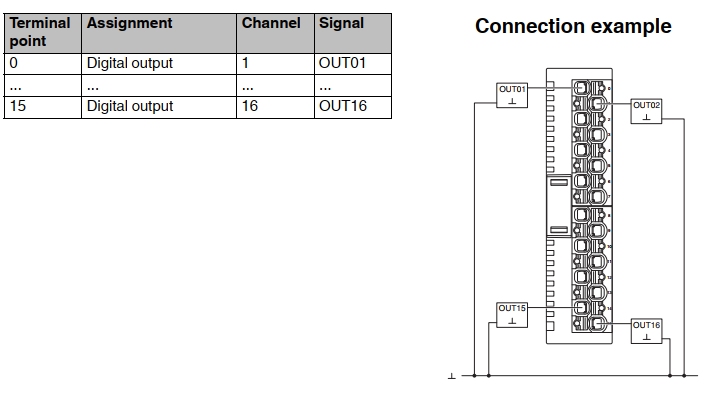

Connections

Input/Output Word

The module is allocated 1 INPUT WORD and 1 OUTPUT WORD:

The 16 bits of the OUT_W correspond to the 16 digital outputs (BIT 0 -> OUT 1).

The INP_W is not used.
