Axioline Smart Elements, Digital input module, Digital inputs: 16 (NPN), 24 V DC, Connection technique: 1 conductor, Protection class IP20.

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

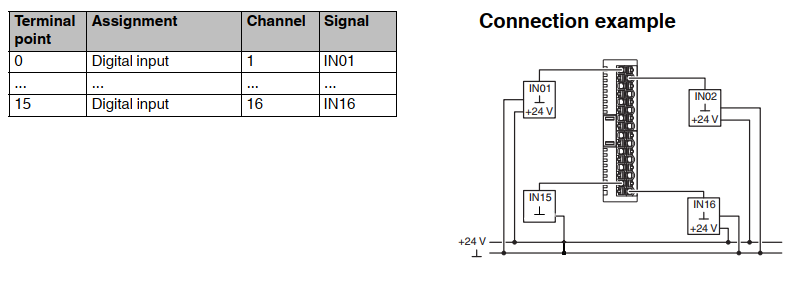

Connections

Input/Output Word

The module is allocated 1 INPUT WORD and 1 OUTPUT WORD:

The 16 bits of the INP_W correspond to the 16 digital inputs (BIT 0 -> INP 1).

The OUT_W is not used.
