Axioline Smart Elements, Module with functions: 1 counter input, 1 control input, 1 direction input, 1 digital output: 24 V DC, 100 mA, IP20 degree of protection.

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

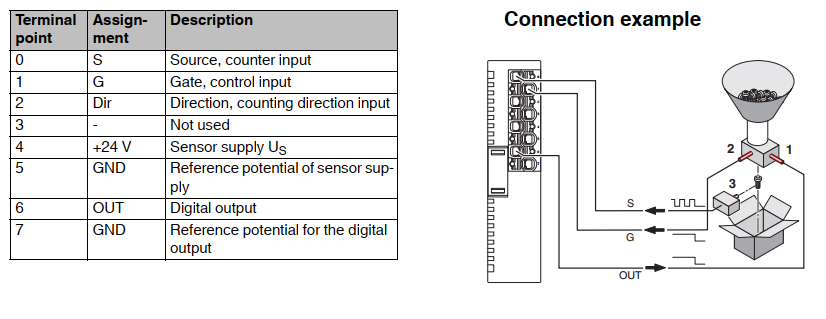

Connections

Input/Output Word

The module is allocated 3 INPUT WORD and 3 OUTPUT WORD:

The 3 INP_W correspond to: Status word, Counter high, Counter low.

The first OUT_W corrsipondes to the Control word.

The other two OUT_W are reserved.
