Axioline Smart Elements, Analog output module, Analog outputs: 4, 4 mA ... 20 mA, Connection technology: 2 conductors, IP20 degree of protection.
NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

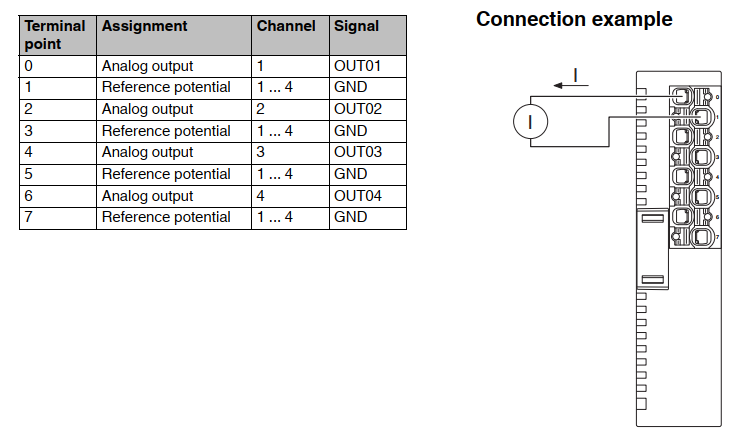

Connections
Input/Output Word
Four INPUT WORDs and four OUTPUT WORDs are allocated to the module:
Each OUT_W corresponds to an analog output.
INP_Ws are not used.
Representation of measured values
Output data (hex) |
Output data (dec) |
Current (4mA..20mA) |
|---|---|---|
0x8001 |
overrange |
> +21.339 |
0x43BB |
17339 |
+21.339 |
0x3E80 |
16000 |
+20.0 |
0x2710 |
10000 |
+14.0 |
0x1770 |
6000 |
+10.0 |
0x1388 |
5000 |
+9.0 |
0x03E8 |
1000 |
+5.0 |
0x0001 |
1 |
+4.001 |
0x0000 |
0 |
+4.0 ... +3.2 |
0x8002 |
Open circuit |
< +3.2 |
