Axioline Smart Elements, Analog input module, Analog inputs: 4, 0 V ... 10 V, Connection technology: 2 conductors, IP20 degree of protection.
NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

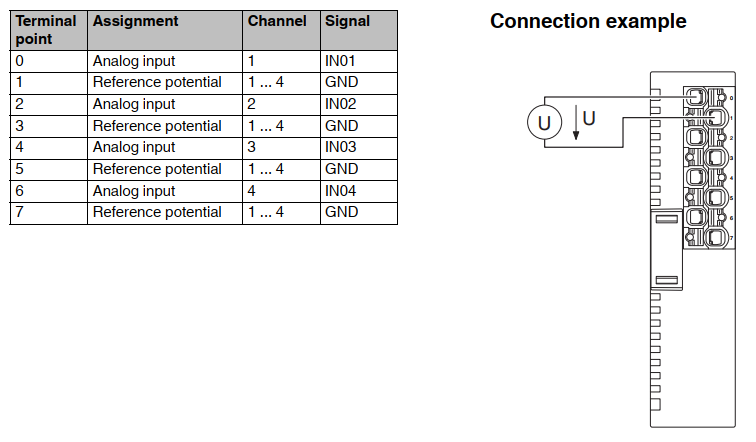

Connections
Input/Output Word
Four INPUT WORDs and four OUTPUT WORDs are allocated to the module:
Each INP_W corresponds to an analog input.
The OUT_Ws are not used.
Representation of measured values
Input data (hex) |
Input data (dec) |
Voltage (0V..10V) |
|---|---|---|
0x8001 |
overrange |
+10.837 |
0x7FFF ... 0x2A56 |
32767 ... 10838 |
+10.837 |
0x2A55 |
10837 |
+10.837 |
0x2710 |
10000 |
+10.0 |
0x1388 |
5000 |
+5.0 |
0x0001 |
1 |
+0.001 |
0x0000 |
0 |
0 |
0xFFFF ... 0x8100 |
-1 ... -32512 |
0 |
0x80FF ... 0x8000, without 0x8001, 0x8080 |
-32513 ... -32767 |
Holds the last value |
0x8080 |
underrange |
0 |
