Axioline F, Module with special functions: 1 SSI interface for absolute encoder, 1 analog output: 0-10 V, ±10 V, 0-5 V, ±5 V, 0-20 mA, 4-20 mA, ±20 mA, Connection technique: 2 conductors.

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

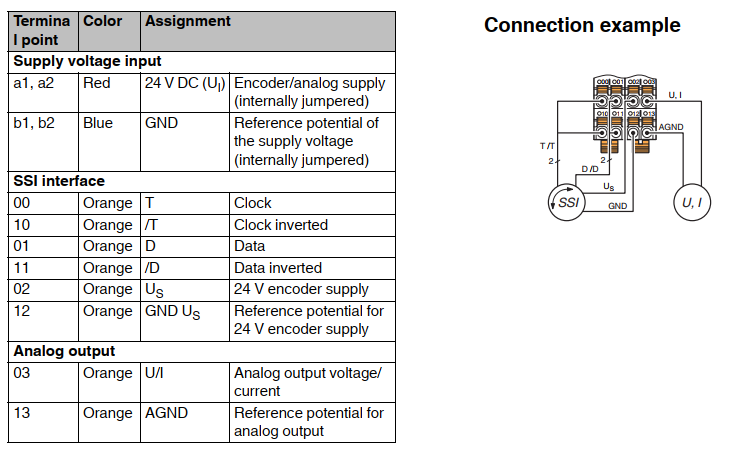

Connections

Input/Output Word

The module is allocated 6 INPUT WORD and 6 OUTPUT WORD:

The 6 INP_W correspond to: SSI state, SSI Pos. 3, SSI Pos. 2, SSI Pos. 1, SSI Pos. 0, Analog out error.

The 6 OUT_W correspond to: SSI cmd, Reserved, Reserved, Reserved, Analog value.
