Axioline F module, 2 inputs for reading load cells.
NOTE: Only some information in the module data sheet is given below. For more details refer to the data sheet itself.

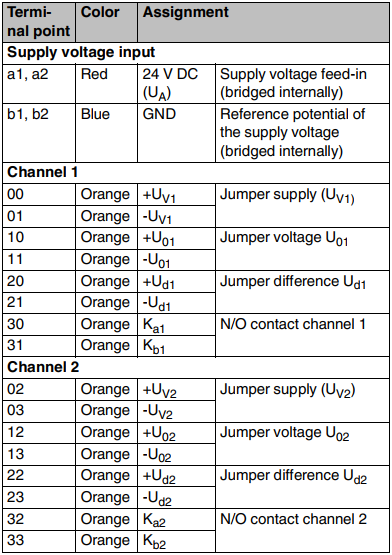

Connections

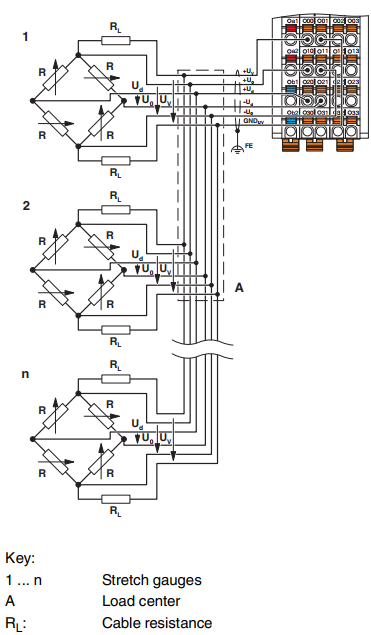

Example: 6-conductor connection.
Input/Output Word
The module is allocated 6 INPUT WORD and 6 (4 unused) OUTPUT WORD:
Input words
Input word |
Channel |
Assignment |
Signal |
|---|---|---|---|
0 |
Channel 1 |
Status word |
SW_IN01 |
1 |
Channel 2 |
Status word |
SW_IN02 |
2 |
Channel 1 |
Measured value |
IN01 |
3 |
Channel 1 |
Measured value |
IN01 |
4 |
Channel 2 |
Measured value |
IN02 |
5 |
Channel 2 |
Measured value |
IN02 |
Output words
Input word |
Channel |
Assignment |
Signal |
|---|---|---|---|
0 |
Channel 1 |
Control word |
CW_IN01 |
1 |
Channel 2 |
Control word |
CW_IN02 |
2 |
|
|
|
3 |
|
|
|
4 |
|
|
|
5 |
|
|
|
