Axioline F, Digital output module 4 relays, N/O contacts, rated voltage up to 230 V AC and 220 V DC, Connection technique: 2 conductors, IEC 61850-3 standard.

Note: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

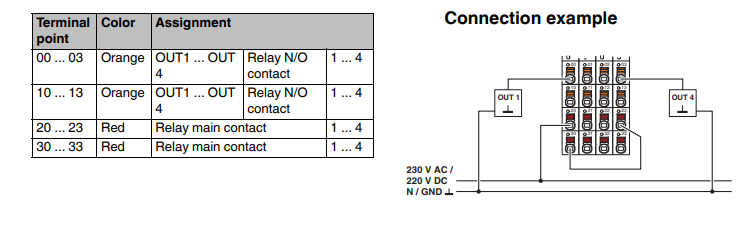

Connections

Input/Output Word

The module is allocated 1 INPUT WORD and 1 OUTPUT WORD:

The OUT_W corresponds to Duty cycle channel 1.

The INP_W is not used.
