Axioline F, Digital output module, Digital outputs: 32, 24 V DC, 500 mA, Connection technique: 1 conductor, Transmission rate in the local bus 100 MBit/s, Protection class IP20.
NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

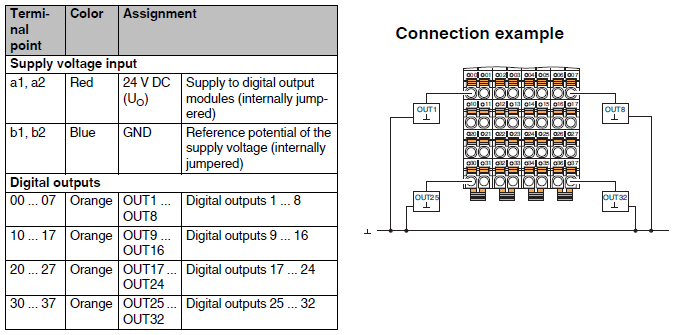

Connections
Input/Output Word
The module is allocated 2 INPUT WORD and 2 OUTPUT WORD:
The 16 bits of the first OUT_W correspond to the first 16 digital outputs (BIT 0 -> OUT 1).
The 16 bits of the second OUT_W correspond to the second 16 digital outputs (BIT 0 -> OUT 17)
The two INP_Ws are not used.
Parameterization
Name |
Description |
Index |
Subindex |
Type |
R/W |
Lenght (bytes) |
Content |
|
|---|---|---|---|---|---|---|---|---|
PD Output Substitute Configuration |
Changes the behavior of outputs when the module receives an Application Reset |
0XFF8D |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
Sets all outputs to "0" |
0x01 |
Maintains previous state |
|||||||
DiagOut |
Allows you to decide if the error "Actuator supply not present" is reported to the control or not. By disabling the error, LED D will also not report it |
0XFF8F |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
Error is reported |
0X01 |
The error is not reported |
|||||||
