Axioline F, Digital output module, Digital outputs: 16, 24 V DC, 500 mA, Connection technology: FLK connector (20-pin), Transmission rate in the local bus 100 MBit/s, Protection class IP20.
NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

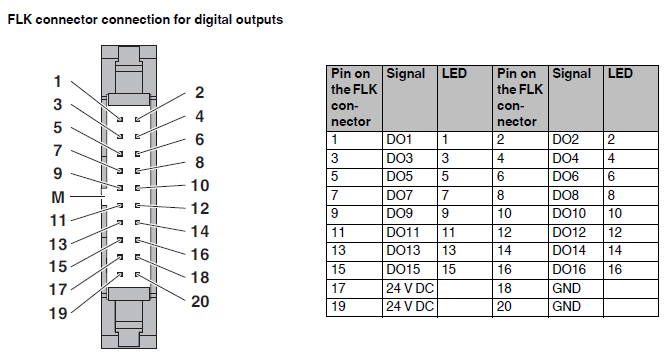

Connections
Input/Output Word
The module is allocated 1 INPUT WORD and 1 OUTPUT WORD:
The 16 bits of the OUT_W correspond to the 16 digital outputs (BIT 0 -> OUT 1).
The INP_W is not used.
Parameterization
Name |
Description |
Index |
Subindex |
Type |
R/W |
Lenght (bytes) |
Content |
|
|---|---|---|---|---|---|---|---|---|
PD Output Substitute Configuration |
Changes the behavior of outputs when the module receives an Application Reset |
0XFF8D |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
Sets all outputs to "0" |
0x01 |
Maintains previous state |
|||||||
DiagOut |
Allows you to decide if the error "Actuator supply not present" is reported to the control or not. By disabling the error, LED D will also not report it |
0XFF8F |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
Error is reported |
0X01 |
The error is not reported |
|||||||
