Axioline F, Digital input module, Digital inputs: 64, 24 V DC, Connection technique: 1 conductor, Transmission rate in the local bus 100 MBit/s, Protection class IP200.

NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

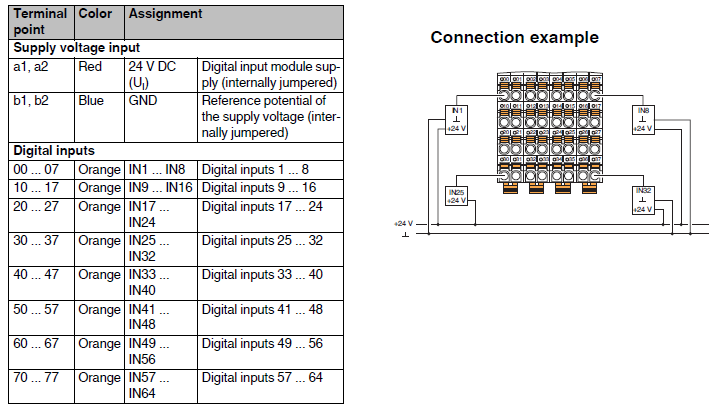

Connections

Input/Output Word

Four INPUT WORD and four OUTPUT WORD are allocated to the module:

The 16 bits of the first INP_W correspond to the first 16 digital inputs (BIT 0 -> INP 1).

The 16 bits of the second INP_W correspond to the second 16 digital inputs (BIT 0 -> INP 17)

The 16 bits of the third INP_W correspond to the third 16 digital inputs (BIT 0 -> INP 33)

The 16 bits of the fourth INP_W correspond to the fourth 16 digital inputs (BIT 0 -> INP 49)

The four OUT_Ws are not used.

Parameterization
