Axioline F, Digital input module, Digital inputs: 32, 24 V DC, Connection technique: 1 conductor, Transmission rate in the local bus 100 MBit/s, Protection class IP20.
NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

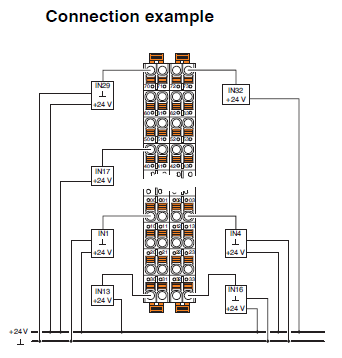

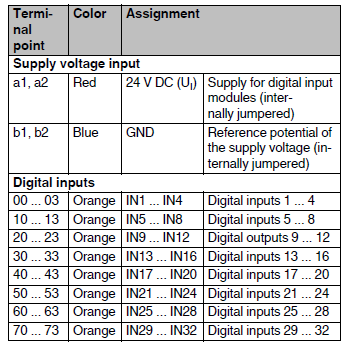

Connections
Input/Output Word
The module is allocated 2 INPUT WORD and 2 OUTPUT WORD:
The 16 bits of the first INP_W correspond to the first 16 digital inputs (BIT 0 -> INP 1).
The 16 bits of the second INP_W correspond to the second 16 digital inputs (BIT 0 -> INP 17)
The two OUT_Ws are not used.
Parameterization
Name |
Description |
Index |
Subindex |
Type |
R/W |
Lenght (bytes) |
Content |
|
|---|---|---|---|---|---|---|---|---|
Input_Filter |
Changes the timing of the filter present on the inputs |
0XFF8F |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
3000 μs |
0X01 |
1000 μs |
|||||||
0X02 |
< 100 μs |
|||||||
