Axioline F, Digital input/output module, Digital inputs: 8, 24 V DC, Connection technique: 1 conductor, Digital outputs: 8, 24 V DC, 500 mA, Connection technique: 1 conductor, Transmission rate in the local bus 100 MBit/s, Protection class IP20.
NOTE: Only some information in the module data sheet is given below. Please refer to the data sheet itself for more details.

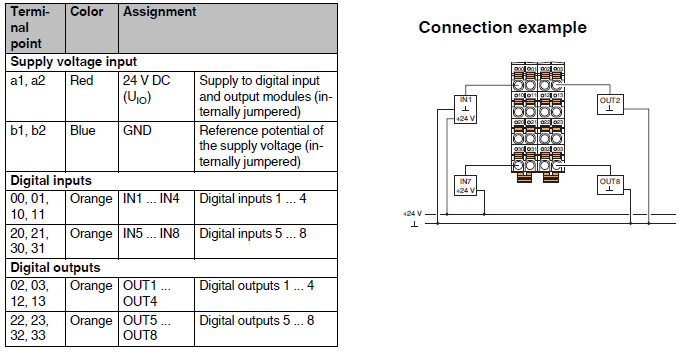

Connections
Input/Output Word
The module is allocated 1 INPUT WORD and 1 OUTPUT WORD:
The first 8 bits of the OUT_W correspond to the 8 digital outputs (BIT 0 -> OUT 1).
The first 8 bits of the INP_W correspond to the 8 digital inputs (BIT 0 -> OUT 1)
Parameterization
Name |
Description |
Index |
Subindex |
Type |
R/W |
Lenght (bytes) |
Content |
|
|---|---|---|---|---|---|---|---|---|
PD Output Substitute Configuration |
Changes the behavior of the outputs when the module receives an Application Reset |
0XFF8D |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
Sets all outputs to "0" |
0x01 |
Maintains previous state |
|||||||
DiagOut |
Allows you to decide if the error "Actuator supply not present" is reported to the control or not. By disabling the error, LED D will also not report it |
0XFF8F |
0 |
Unsigned 8 |
R/W |
1 |
0X00 (Default) |
Error is reported |
0X01 |
The error is not reported |
|||||||
