Shows the status of the indicated PowerSet.
Syntax |
PS_STATUS powerSet name |
|---|---|
namePowerSet |
PowerSet name |
Notes |
The same information can be accessed using the DV command to access the data server and then select the RTE LOgical Variable (LOV) group. |
The following is a list of what the directive provides:
String |
Description |
|---|---|
Enable by alarms<true/false> |
•True = OK by alarms handling •False = Power inhibited by alarms handling |
PowerAllowed<true/false> |
•True = Keyword power_allowed has been set TRUE (typically by program) •False = The Keyword power_allowed has been set FALSE (typically by program) |
namePowerSet.PowerEnable<true/false>. |
•True = The power set is enabled (see instruction ps_power_enable) •False = Power set enable is missing |
PowerRequest(E/L)<true/false> |
•E = Power request signal is imposed on the front (edge) •L = The power request signal is set to the level (level) •True = The power forward request is present •False = The power forward request is not present |
ST_power.enable<true/false> |
•True •False |
ST_power.q<true/false><time> |
•True •False •Time |
G.P.Fb.(n)<true/false><mask> |
•True •False •Mask |
G.P.Fb.CAN (PAM) <mask> |
•PAM •Mask |
GlobalPower<true/false> |
•True •False |
POffOnNoFb (true/false)<time> |
•True •False •Time |
POffOnAlarm (true/false)<time> |
•True •False •Time |
Prog.ch.Enab<maskAct.ch.Enab<mask>> |
•maskAct.ch.Enab<mask> •Mask |
Ch.FeedBack<mask> |
•Mask |
Channels in Reset (LAM) <mask> |
•LAM •Mask |
Inihbit Time Active (LAM) <mask> |
•LAM •Mask |
Channels in Fault (LAM) <mask> |
•LAM •Mask |
Channels in Fault Reset (LAM) <mask> |
•LAM •Mask |

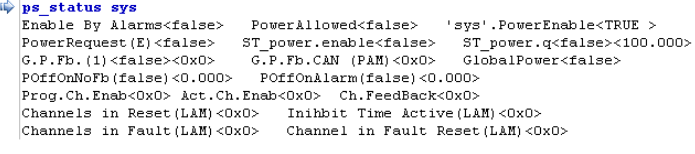

Example
