This command allows you to sniff messages exchanged from an Ethernet port via a bridge port. To be used only for diagnostic purposes in case an external hardware sniffer cannot be used.
Syntax |
ETH_BRIDGE ethBridge ethSniffed |
|---|---|
ethBridge |
The Ethernet port that is used as the bridge |
ethSniffed |
•<> 0 = the ethernet port being sniffed • 0 = disables the use as a bridge |
Notes |
NOTE: Using RP2 there is a limitation that on eth3 you can enable bridging only on EtherCAT messages and not for Ethernet messages.

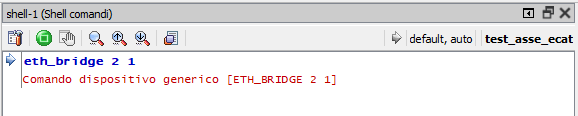

Example
